Product overview:

Multi-color fiberglass asphalt shingles is a tile-shape waterproofing material. With fiberglass felt as matrix, the products are dipped with high-quality petroleum asphalt, covered with multi-color ceramic particles on one side and isolating materials on the other side. It has the advantages of lightness, various shapes, rich colors, firmness and durability, which make the house appearance more attractive and elegant.

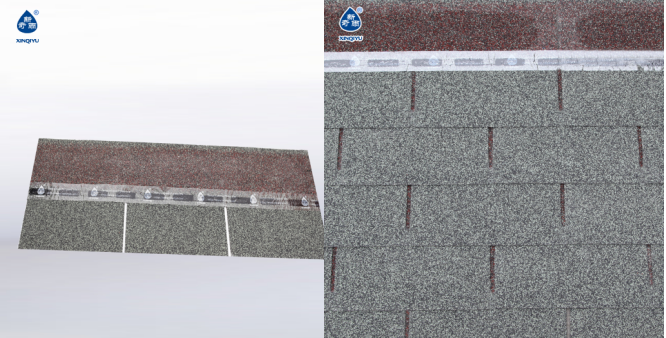

Single-decked Type

Components:

Asphalt, fiberglass felt,

multi-color ceramic particles

Specifications:

Length——1000±3mm

Width——333±3mm

Weight——Approx.10kg/㎡

Feature:

Self-contained adhesive tape

Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. villa, resort, townhouse)

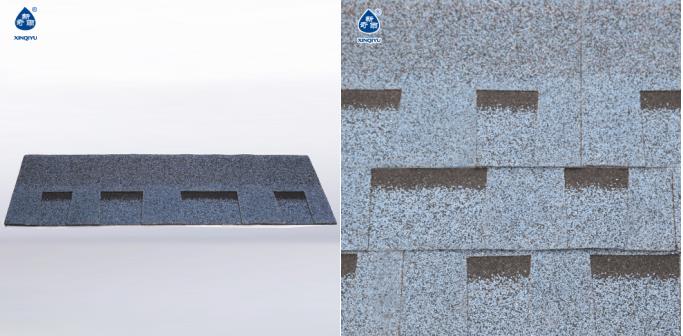

Double-decked Type

Components:

Asphalt, fiberglass felt,

multi-color ceramic particlesSpecifications:

Length——1000±3mm

Width——333±3mm

Weight——Approx.12.8kg/㎡

Feature:

Self-contained adhesive tape

Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villa, resort, townhouse)

Gothic type

Components:

Asphalt, fiberglass felt, multi-color ceramic particles

Specifications:

Length——1000±3mm

Width——320±3mm

Weight——Approx.8.5kg/㎡

Feature:

Self-contained fully-adhesive tape

Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villa, resort, townhouse)

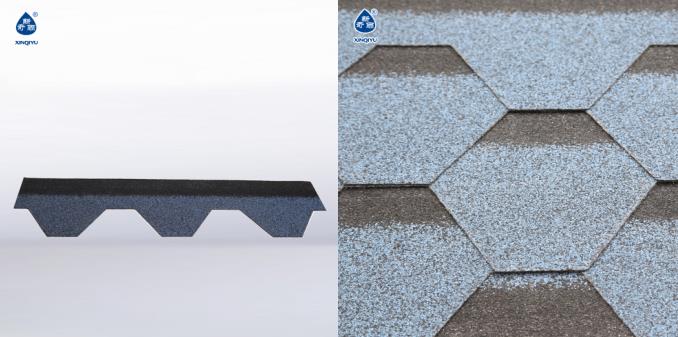

Mosaic type

Components:

Asphalt, fiberglass felt, multi-color ceramic particles

Specifications:

Length——1000±3mm

Width——320±3mm

Weight——Approx.8.5kg/㎡

Feature:

Self-contained fully-adhesive tape

Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villa, resort, townhouse)

Lantern type

Components:

Asphalt, fiberglass felt, multi-color ceramic particles

Specifications:

Length——1000±3mm

Width——320±3mm

Weight——Approx.8.5kg/㎡

Feature:

PATENTED product with fully-adhesive tape

Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villa, resort, townhouse)

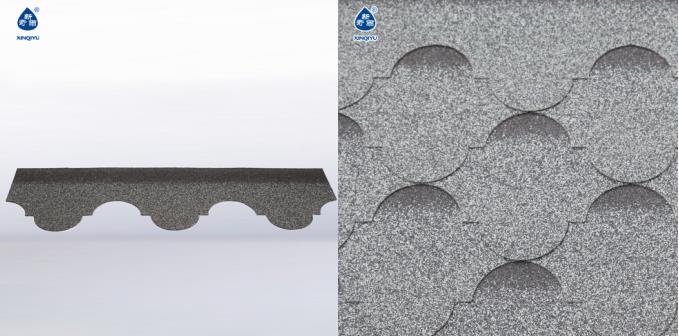

Fish scale type

Components:

Asphalt, fiberglass felt, multi-color ceramic particles

Specifications:

Length——1000±3mm

Width——320±3mm

Weight——Approx.8.5kg/㎡

Feature:

PATENTED product with fully-adhesive tape

Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villa, resort, townhouse)

Technical index:  GB/T20474-2006

Colors available:

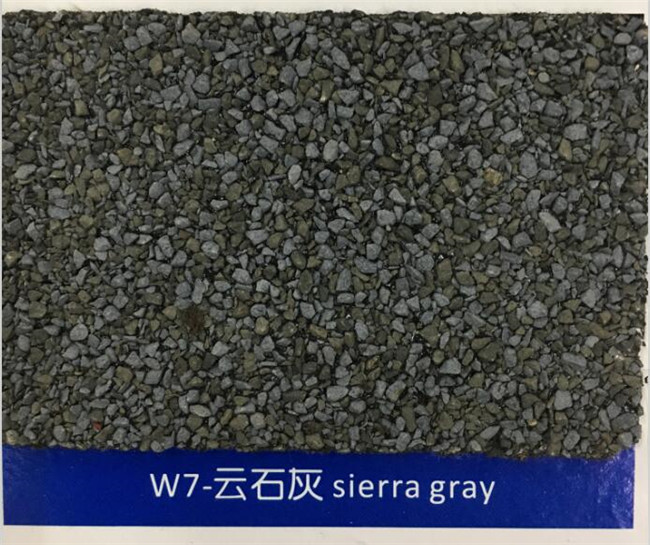

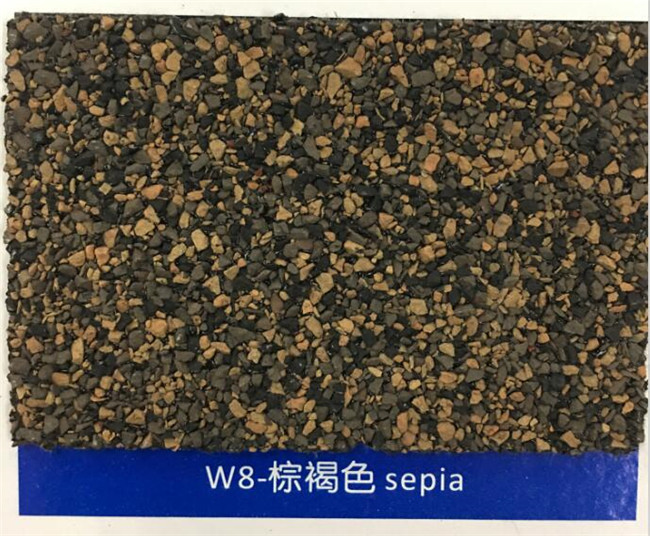

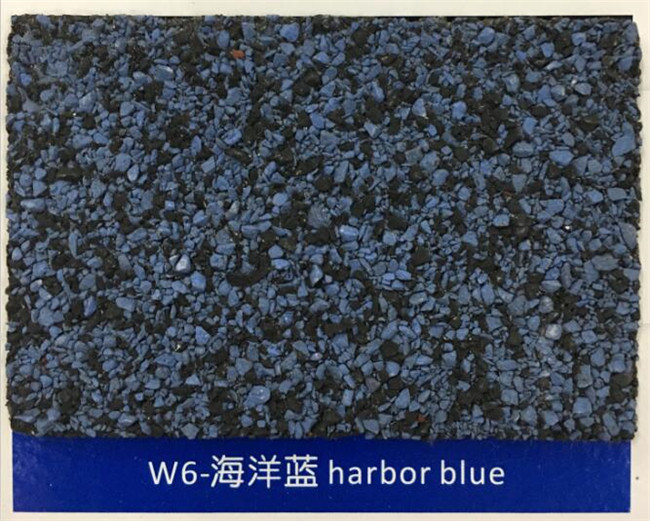

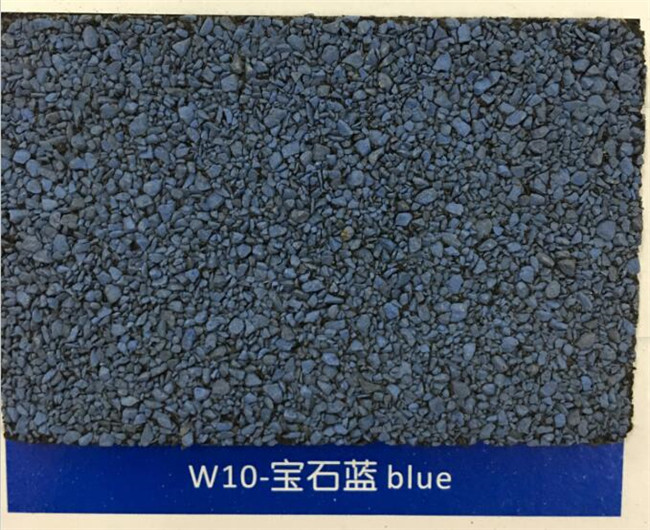

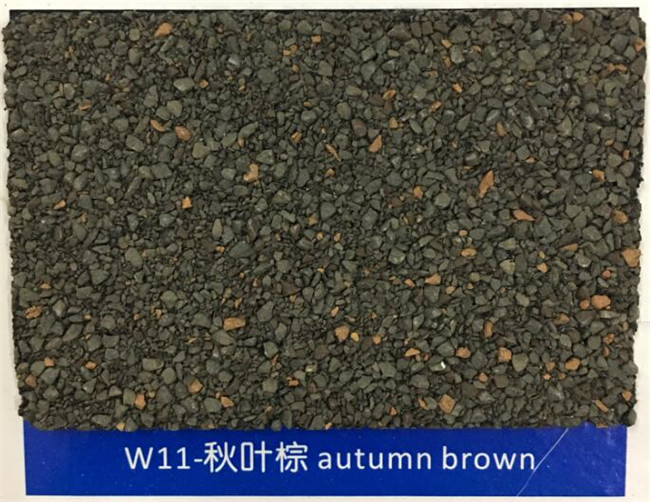

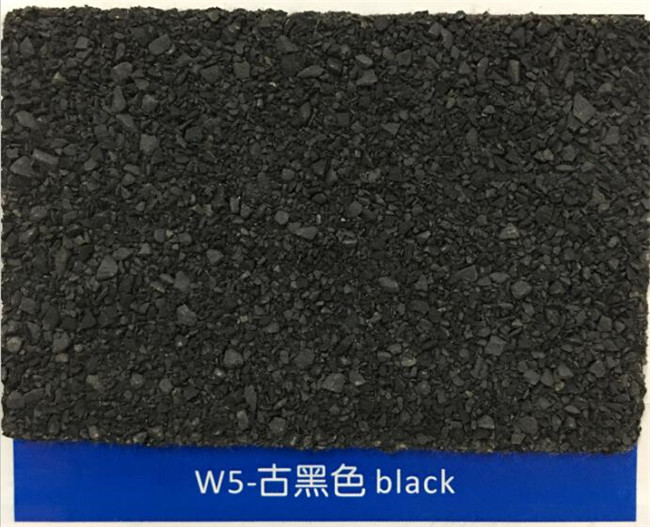

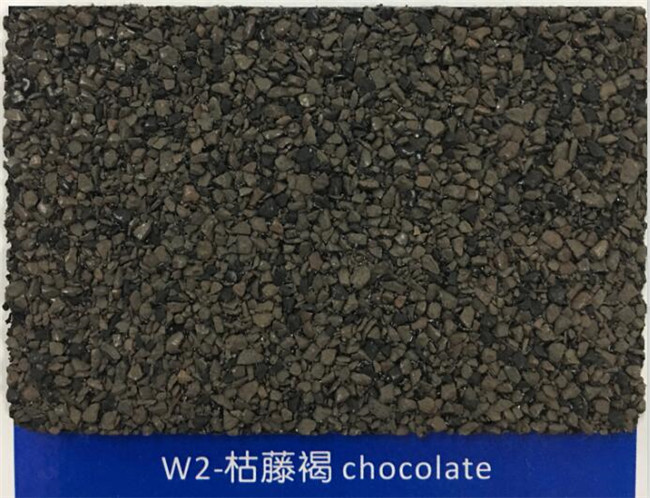

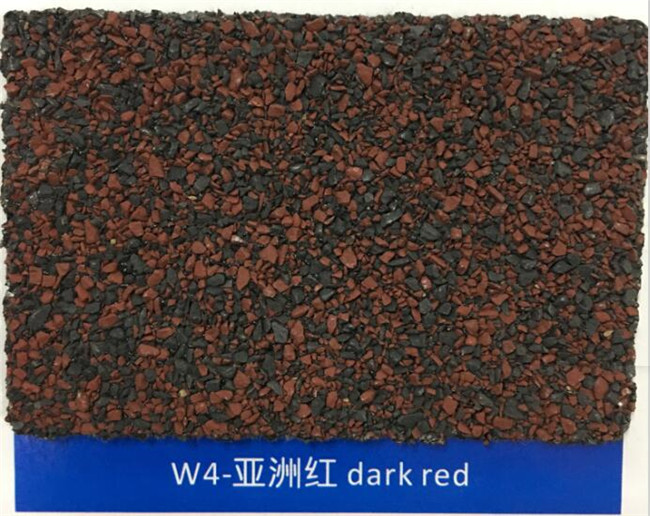

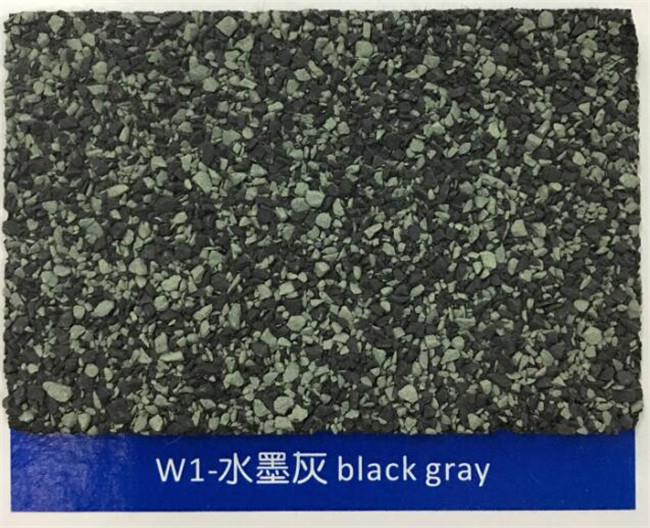

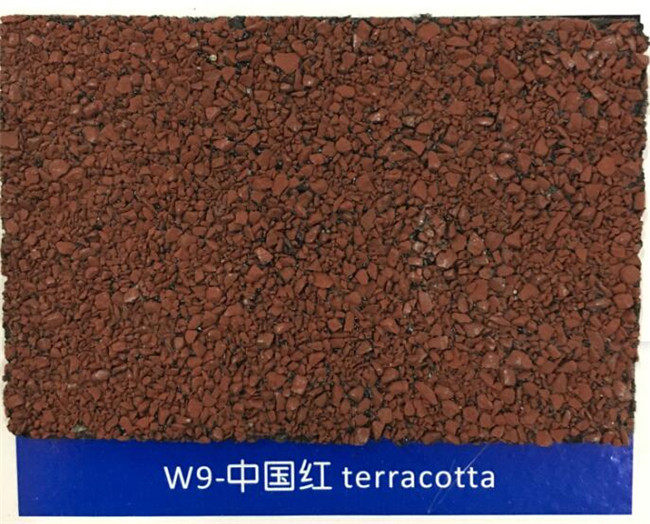

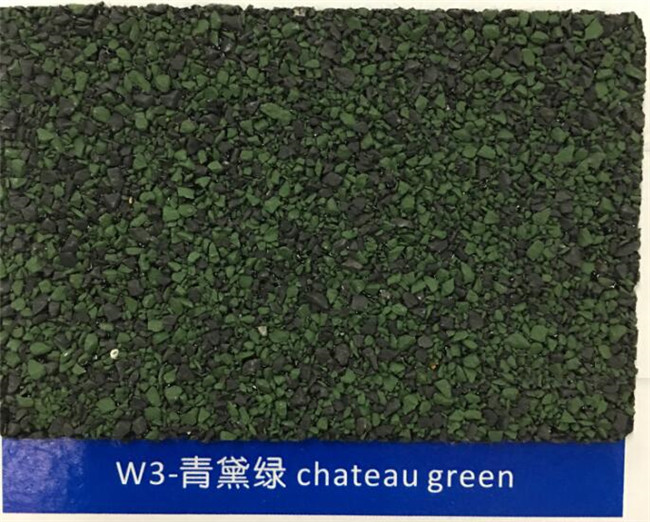

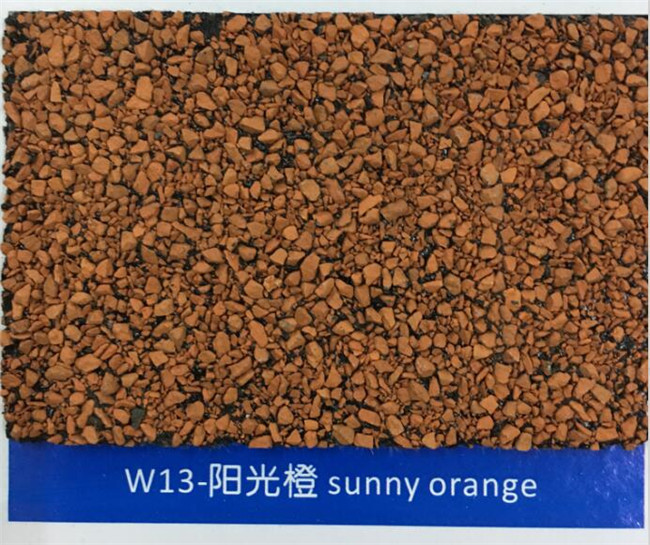

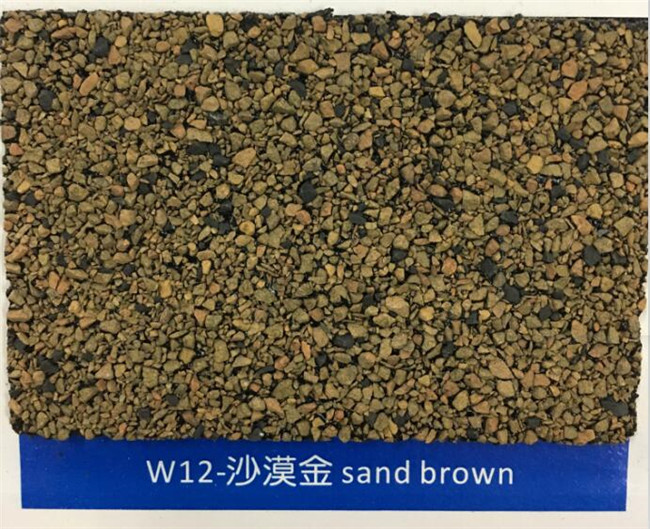

W-1 black gray, W-2 chocolate, W-3 chateau green, W-4 dark red ,W-5 black, W-6 harbor blue, W-7 sierra gray, W-8 sepia, W-9 terracotta, W-10 blue, W-11 autumn brown, W-12 sand brown , W-13 sunny orange.
